Inter-Widget Communication (IWC)

Improvements since 1.1.0

As of 1.1.12, the IWC has been optimized to utilize shared workers as well as undergone an overall code cleanup. The results of this has given some significant speed improvements for the IWC Client.

Testbench

The test used for this benchmarking could use some improvements, the latency averages should not be of concern to developers as the results are proportional to the machine ran on. The garbage collection of each browser tested took over control a few times during each test causing some spikes in latency as well. Running the testbench a few times showed about a ±10% on the results.

The test

To test latency, an IWC client was used to make a set request and wait for a response. Once a response was received it would make another request. This is repeated 10 times per run. After 10 request/responses the average latency is computed for the run. To try and isolate any browser computation blocking, there are 500 runs per overall test.

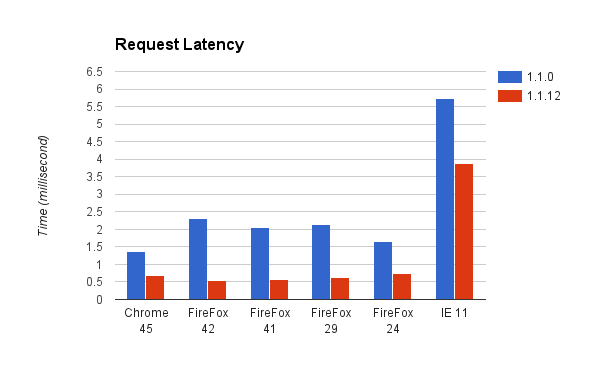

Results


Browser v1.1.0 v1.1.12 % Faster
Chrome 45 1.3792 0.6878 50.13%
FireFox 42 2.2988 0.5402 76.50%
FireFox 41 2.0472 0.5792 71.71%
FireFox 29 2.1272 0.6368 70.06%
FireFox 24 1.6454 0.732 55.51%
IE 11 5.7396 3.88 32.40%

Chrome/FF

Only tested against version 45 of chrome thus far. Our firefox baseline, the initial version of firefox allowing shared workers (29) and the latest 2 releases of firefox have been tested. Across these two browsers throughput of IWC messages has doubled.

IE

IE 11 has limited support for IWC. Without putting time into specific IE enhancements, throughput has gone up by almost a third.
