IWC Debugger: Elections
The elections tool is a timeline plot of the IWC's distributed consensus algorithm determining which browser window should be taking "leadership" of running the IWC bus. As a designated leader closes, a new leader must be determined to retain the state of the bus. This plot gives a visual representation of what goes on during the eleciton process.

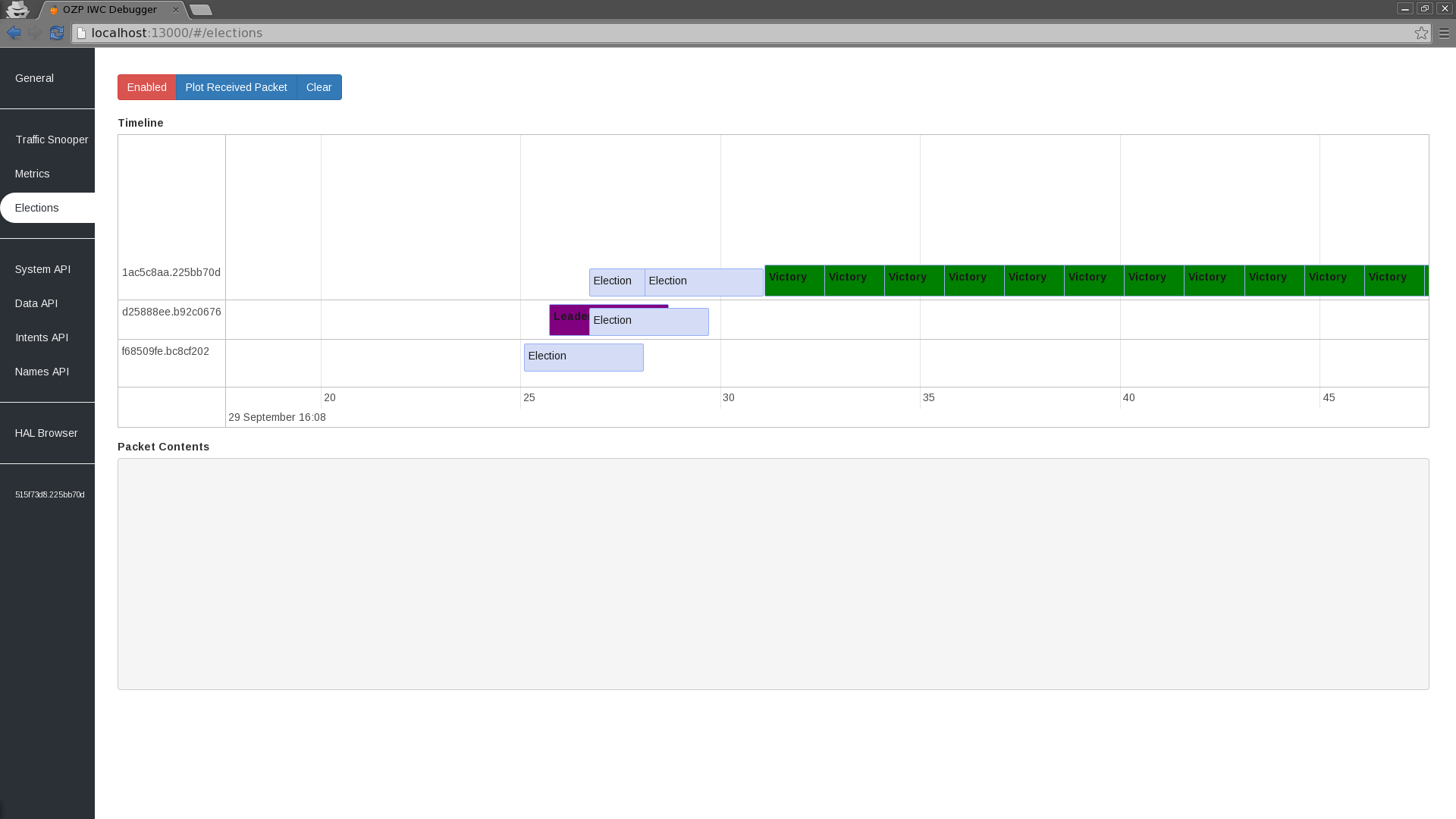

An example of leadership determination of the current IWC Bus.
Enable
This button will toggle the plotting of election events.
Plot Received Packets
Plots packets passing through the IWC along side the election events.
Clear
Clears the Election timeline.
