IWC Debugger: Metrics
The metrics tool is a timeline plot of metrics gathered from the IWC Bus. The metrics are gathered as a singleton under
the ozpIwc.wiring.metrics module.

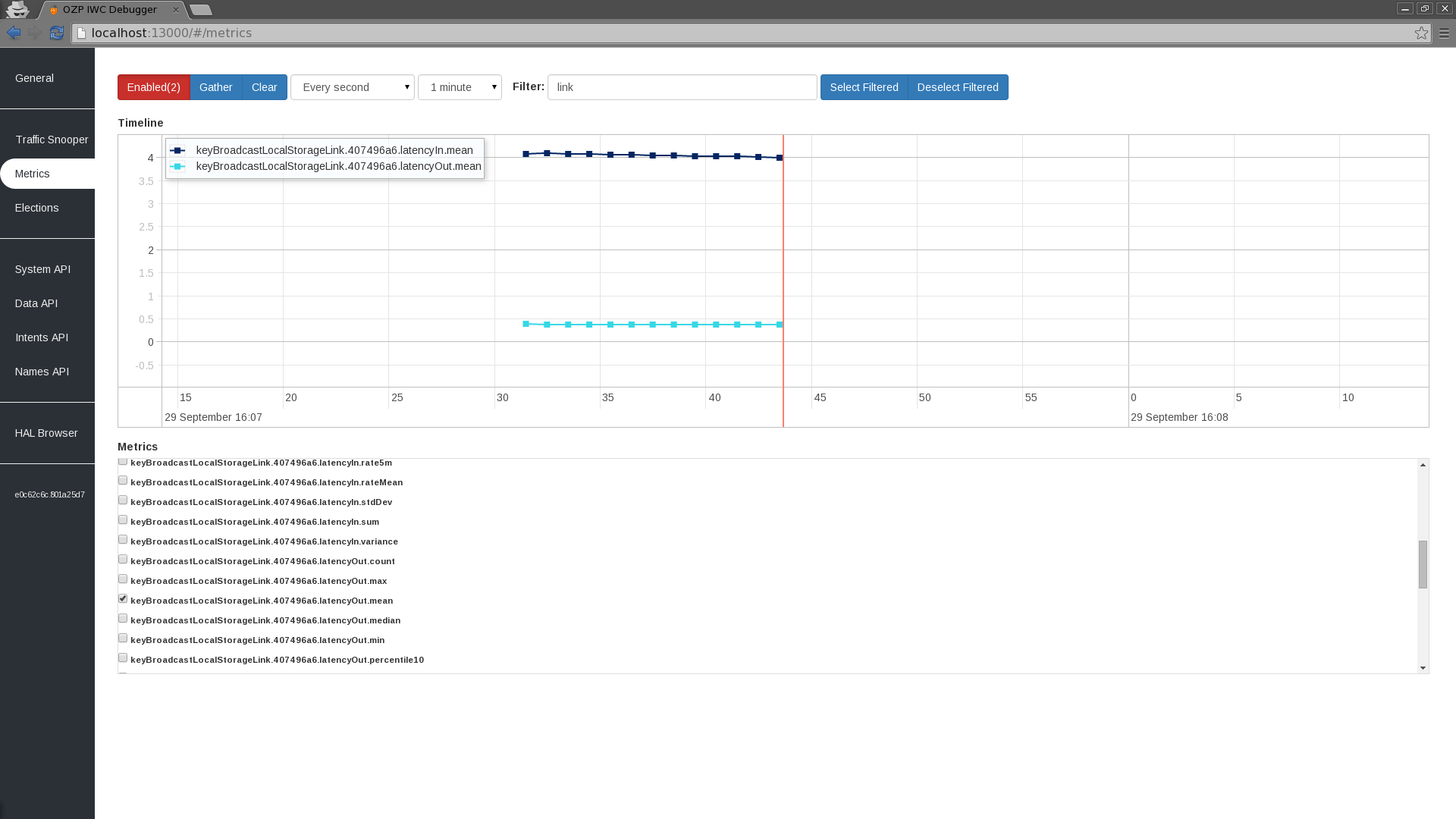

An example of tracking all packets sent out by the IWC Bus's Data Api module.
Disable(0)
This button will toggle the plotting of metrics from the metrics module that are enabled in the Metrics list.
Gather
Plots the current metrics from the metrics module on the enabled metrics in the Metrics list.
Clear
Clears the Metrics timeline but not the metrics.
"Every Second" Dropdown
A dropdown to note how often to plot updates from the metrics module
"1 minute" Dropdown
How long to retain points on the plot. By default after a plotted point has existed for 1 minute it will be removed.
Filter
Filters the Metrics list using string matching.
Select Filtered
Enables plotting on all of the metrics currently shown in the Metrics list.
Deselect Filtered
Disables plotting on all of the metrics currently shown in the Metrics list.
